参数 | 参数值 | 操作 |
---|---|---|
商品目录 | 电流传感器 | |
FET类型 | 非侵入型(分裂铁心) | |
额定电流 | 30A | |
匝数比 - 初级:次级 | 1800:1 | |
端子类型 | 导线引线 | |
产品特性 | AC |
What is CT sensors
Current transformers (CTs) are sensors that are used for measuring alternating current. They are particularly useful for measuring whole building electricity consumption (or generation for that matter).

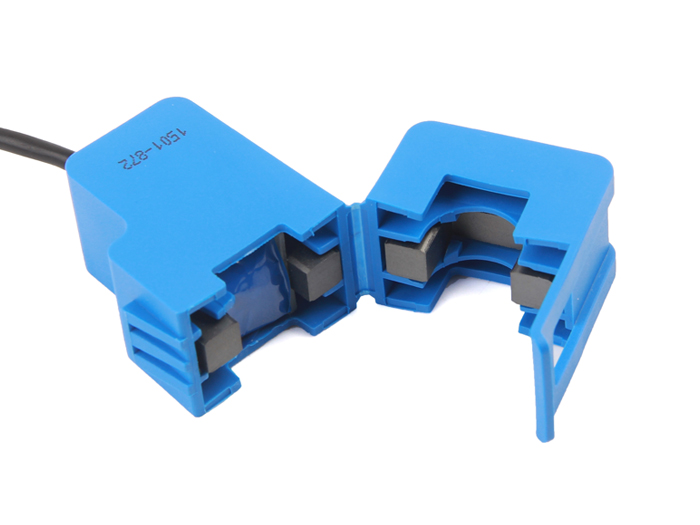

The split core type such as the CT in the picture above, is particularly suitable for DIY use it can be clipped straight on to either the live or neutral wire coming into the building without having to do any high voltage electrical work.
Applications
Suitable for the current measuring
Monitoring and protection of AC motor
Lighting equipment
Air compressor
Specifications
Input Current: 0~30A AC
Output Mode: DC 0~1V
Non-linearity:2-3%
Build-in sampling resistance(RL): 62Ω
Turn Ratio: 1800:1
Resistance Grade: Grade B
Work Temperature: -25°C ~ ﹢70°C
Dielectric Strength(between shell and output): 1000V AC/1min 5mA
Leading Wire in Length: 1m
Open Size: 13mm x 13mm
Technical details
Dimensions | 0mm x0mm x0mm |
Weight | G.W 72g |
Battery | Exclude |
Part List
Non-invasive AC Current Sensor (30A max) | 1 |
ECCN | ERA99 |
HSCODE | 9030899090 |
USHSCODE | 90303338 |
UPC | 841454105442 |
ROHS | 1 |
What is CT sensors
Current transformers (CTs) are sensors that are used for measuring alternating current. They are particularly useful for measuring whole building electricity consumption (or generation for that matter).
The split core type such as the CT in the picture above, is particularly suitable for DIY use it can be clipped straight on to either the live or neutral wire coming into the building without having to do any high voltage electrical work.
Applications
Suitable for the current measuring
Monitoring and protection of AC motor
Lighting equipment
Air compressor
Specifications
Input Current: 0~30A AC
Output Mode: DC 0~1V
Non-linearity:2-3%
Build-in sampling resistance(RL): 62Ω
Turn Ratio: 1800:1
Resistance Grade: Grade B
Work Temperature: -25°C ~ ﹢70°C
Dielectric Strength(between shell and output): 1000V AC/1min 5mA
Leading Wire in Length: 1m
Open Size: 13mm x 13mm
Technical details
Dimensions | 0mm x0mm x0mm |
Weight | G.W 72g |
Battery | Exclude |
Part List
Non-invasive AC Current Sensor (30A max) | 1 |
ECCN | ERA99 |
HSCODE | 9030899090 |
USHSCODE | 90303338 |
UPC | 841454105442 |
ROHS | 1 |
